TRAXION S | TiAlN | 260mm Travel - Surron Ultra Bee

PURE Racing presents the TRAXION S fork designed for Surron Ultra Bee.

Tuning and performance specifications:

• Internal preload adjustment on both legs.

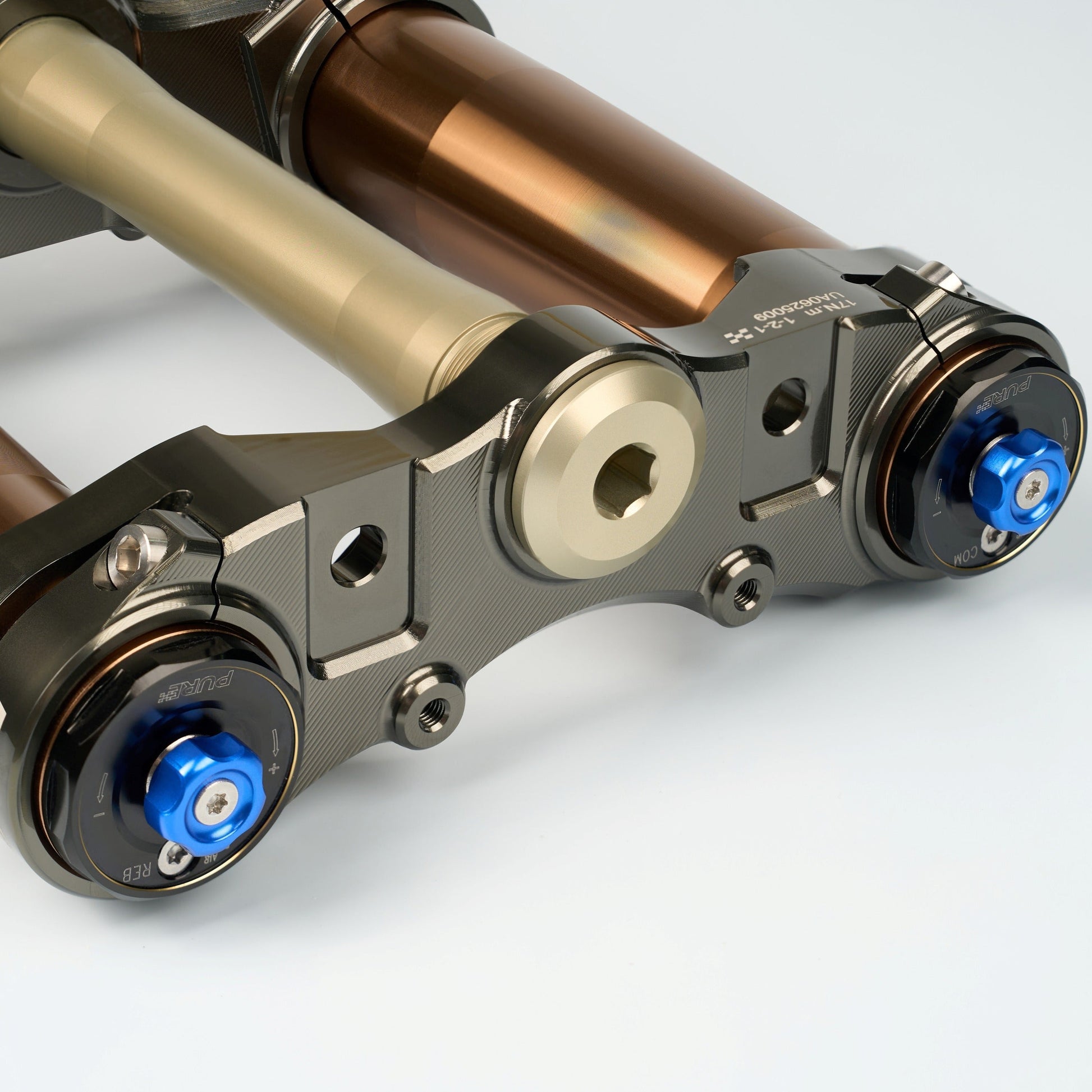

• External 24 click, compression and rebound adjustment.
• Hydraulic bottom out on both legs.
• 5 Spring weight tuning possibilities. (sold separately)
• 2 Valve tunes Trail & MX

Material and design specifications:

• 3D Printed Waffle Pistons located in upper and lower chambers of the internal cartridges, both for compression and rebound legs.

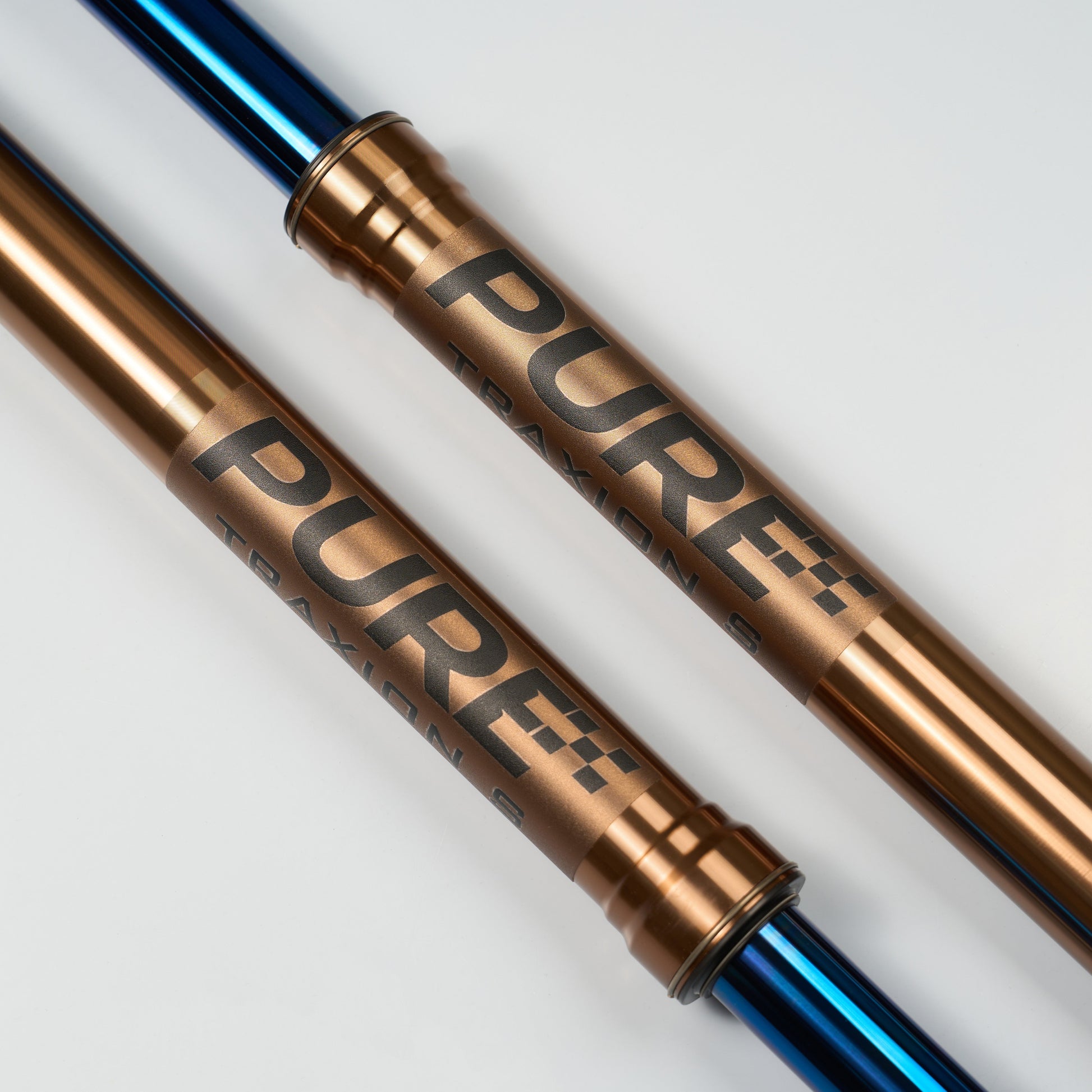

• TiAlN (Titanium Aluminium Nitride) stanchion coating offers micro-level smoothness, superior lubrication, outstanding wear and scratch resistance, and excellent thermal stability.
• Precision-honed inner cylinders with a ±0.01 mm tolerance, delivering exceptionally smooth damping and enhanced traction.

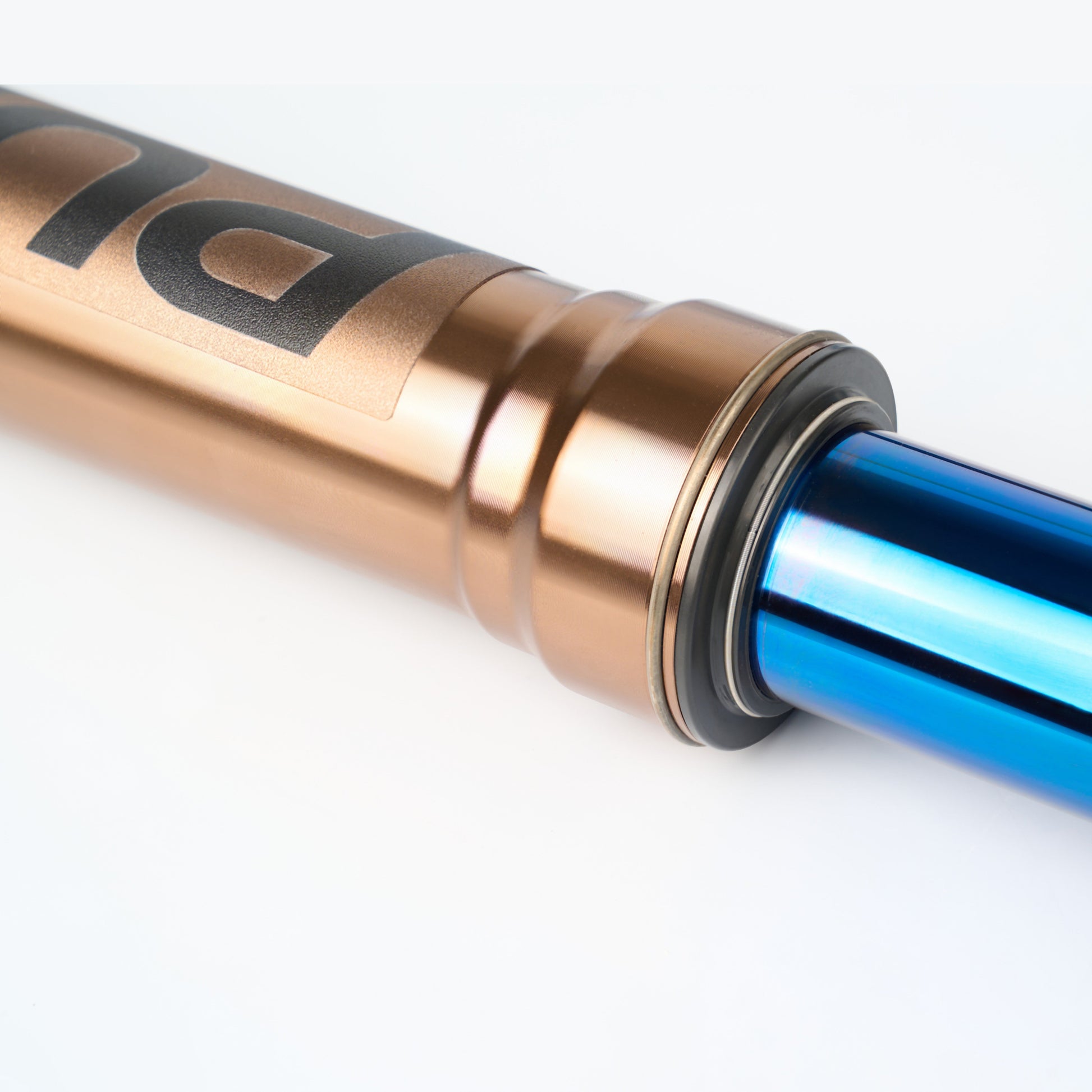

• Custom-designed oil and dust seals strike an optimal balance between sealing efficiency and low friction, ensuring consistent oil flow over extensive use.
• Advanced fluid dynamics provide a progressive, quiet, and controlled damping response.
• The link plate, refined through FEM analysis, guarantees high rigidity, fatigue durability, and weight-optimized strength.

IN THE BOX:

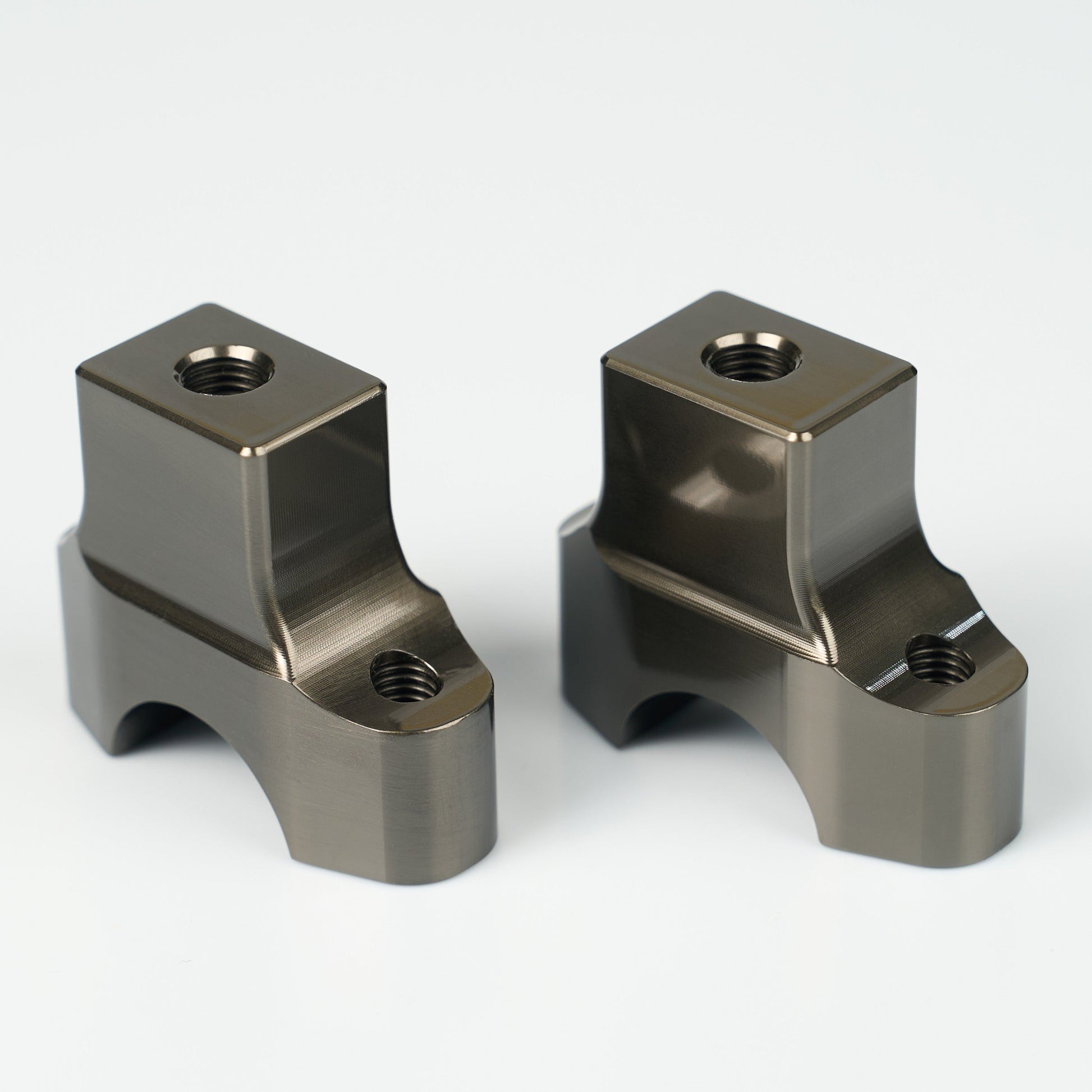

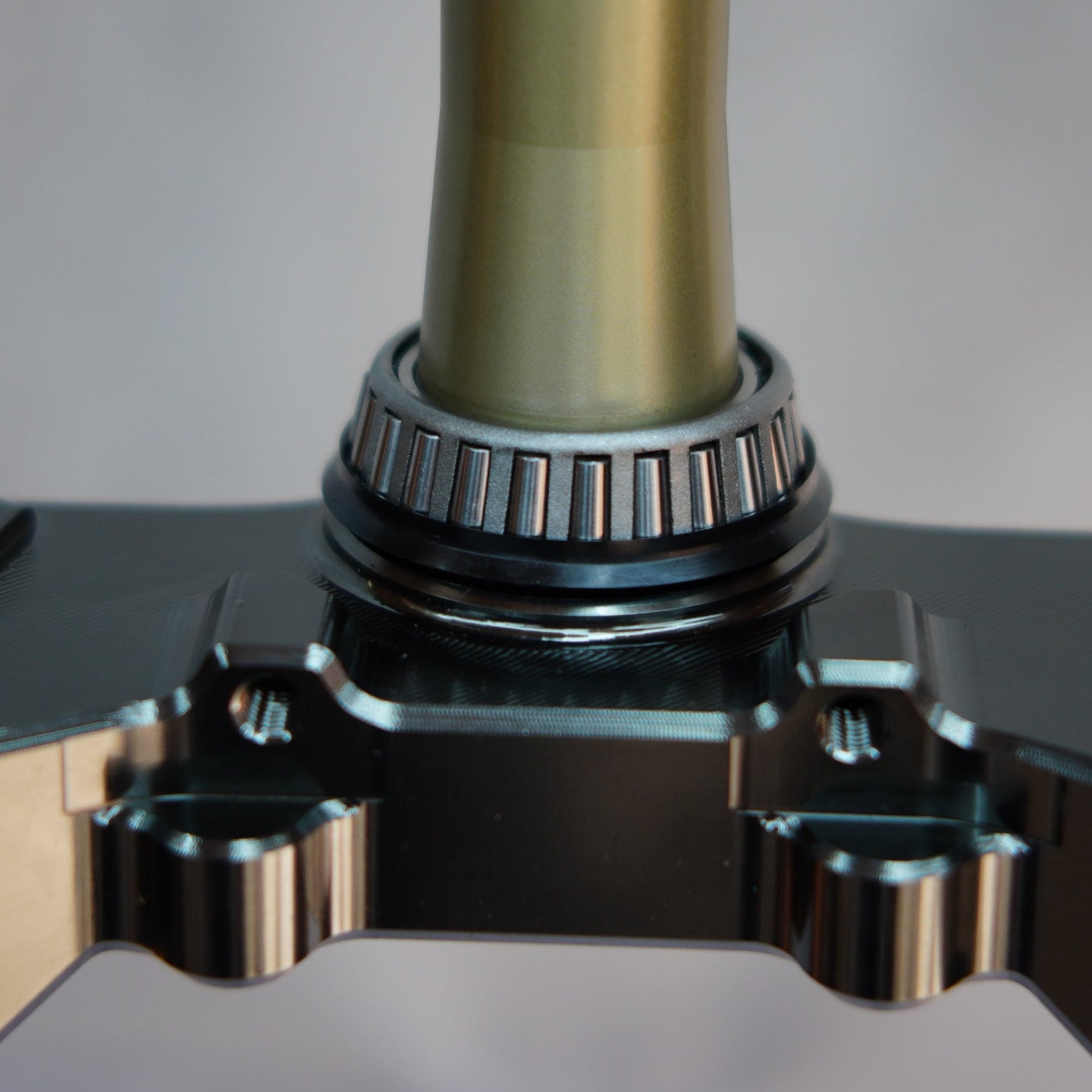

Fork, CNC Crown, CNC Stem and lower bearing pre installed, headset spacers.

Not Included, Stanchion guards, Ultra Bee guards can be reused.

TECHNICAL SPECIFICATIONS:

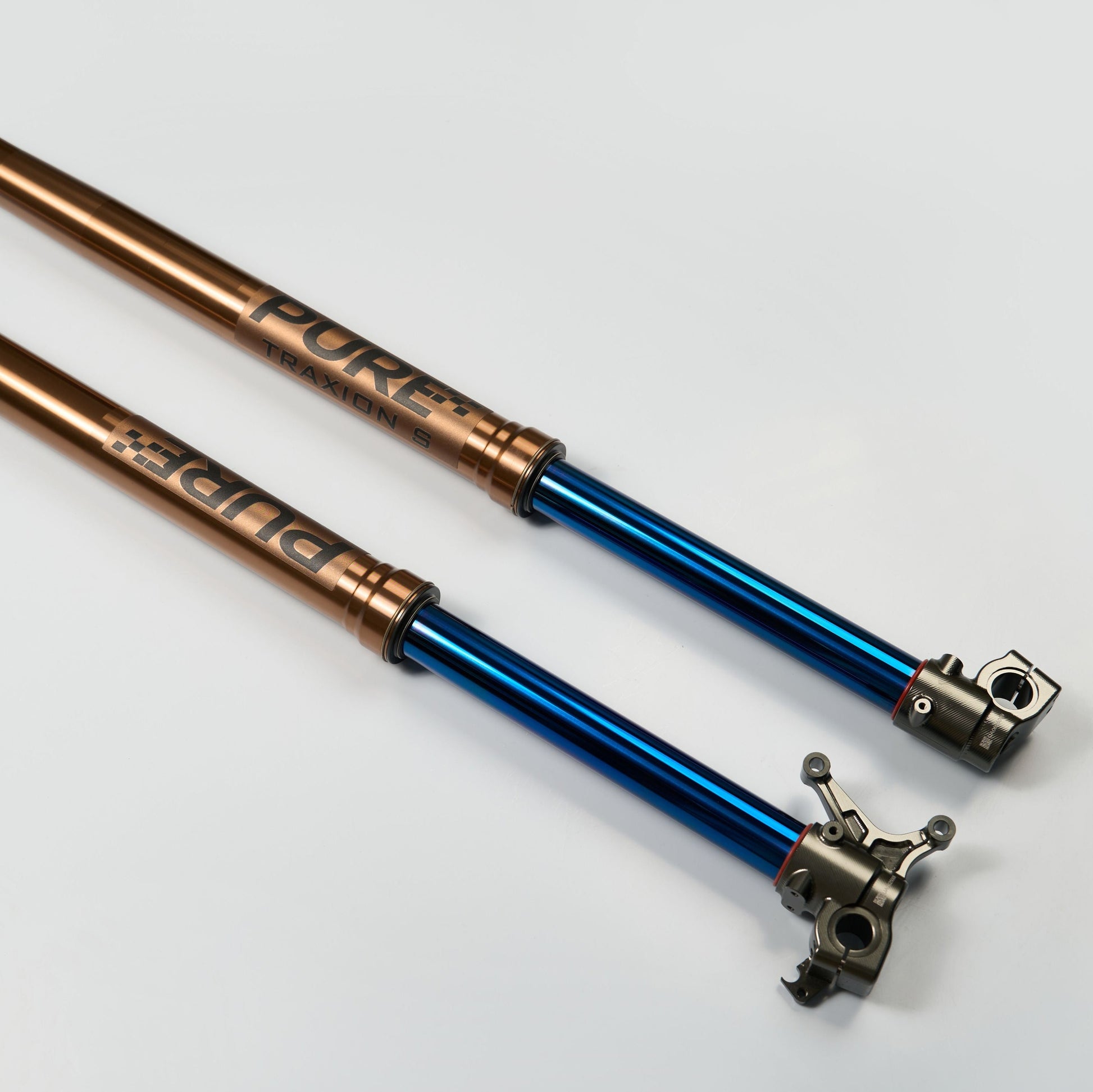

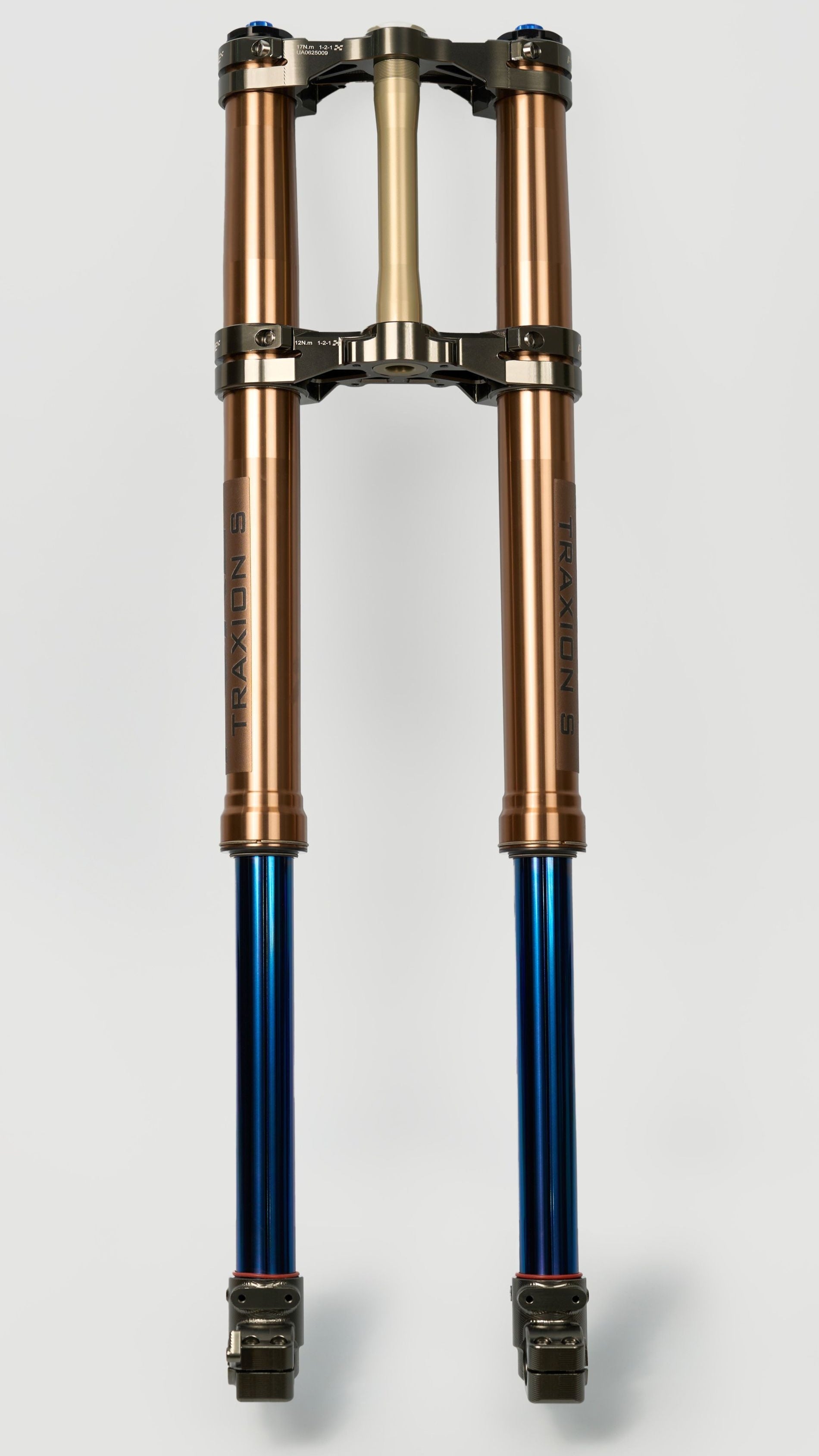

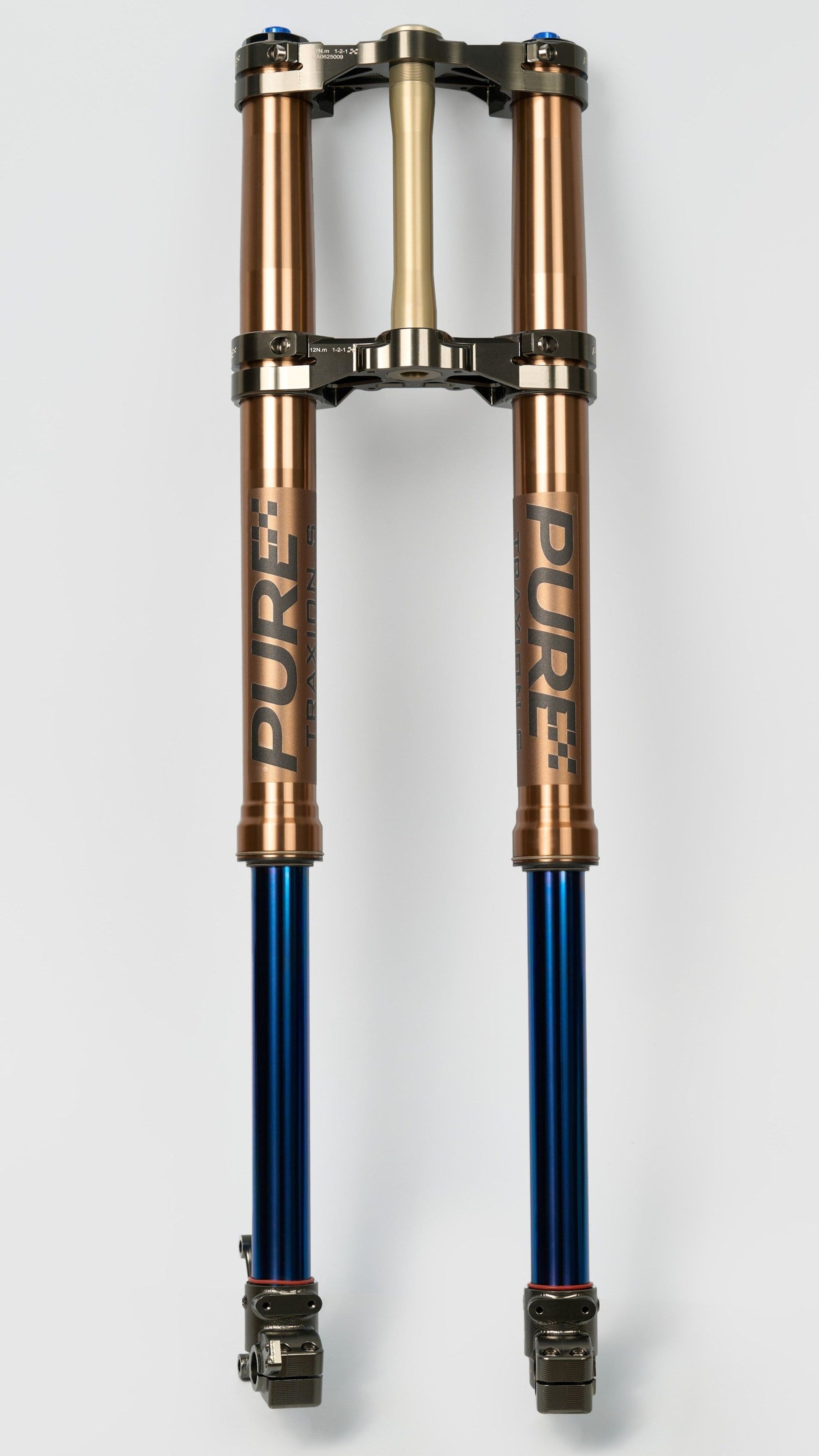

NAME: TRAXION S

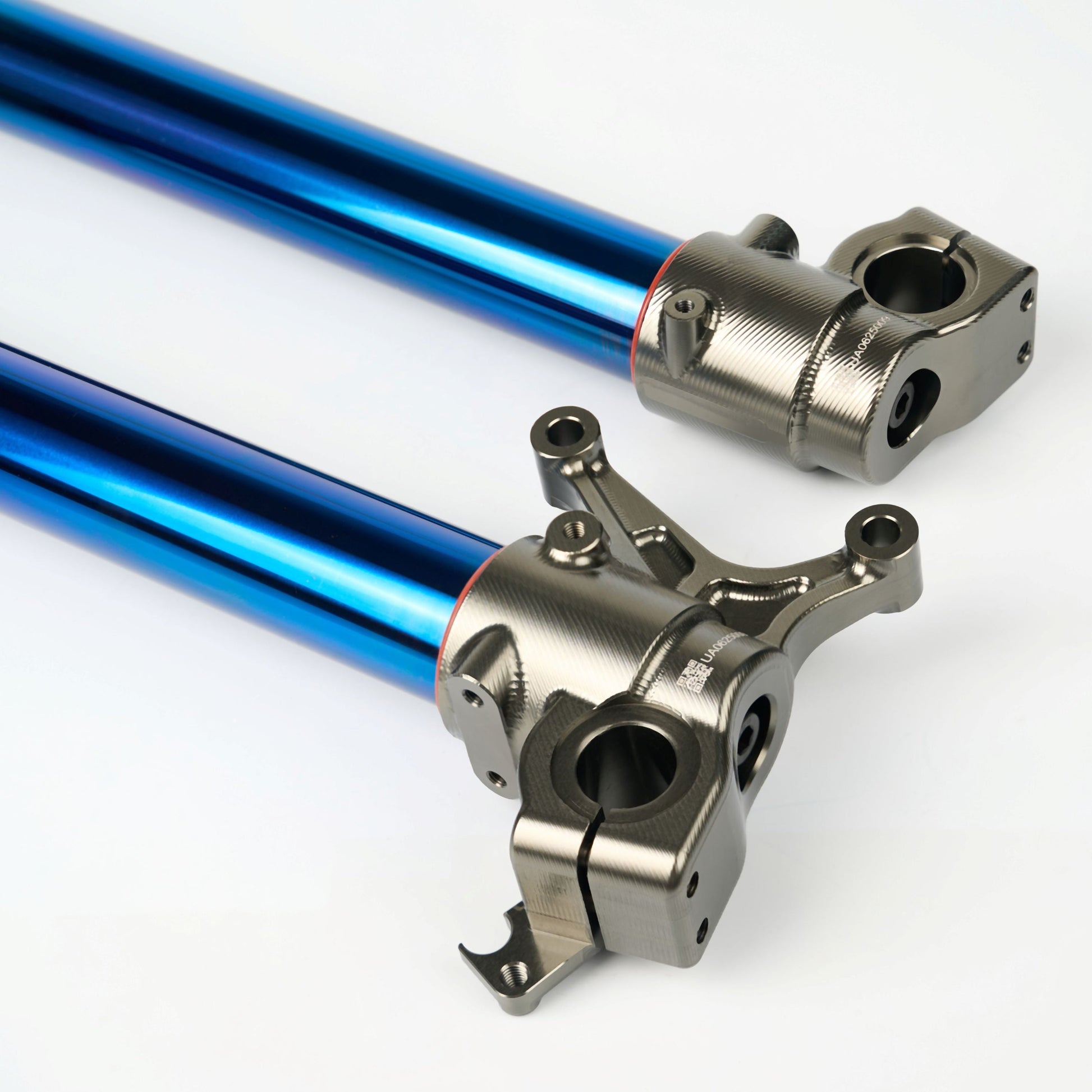

DROPOUTS: Surron Ultra Bee

TUBE DIAMETER: Inner 38mm/ Outer 50mm

STANCHIONS:  Blue TiAlN Titanium Aluminium Nitride coated

TRAVEL: 260mm / EXTENDED LENGTH: 850mm

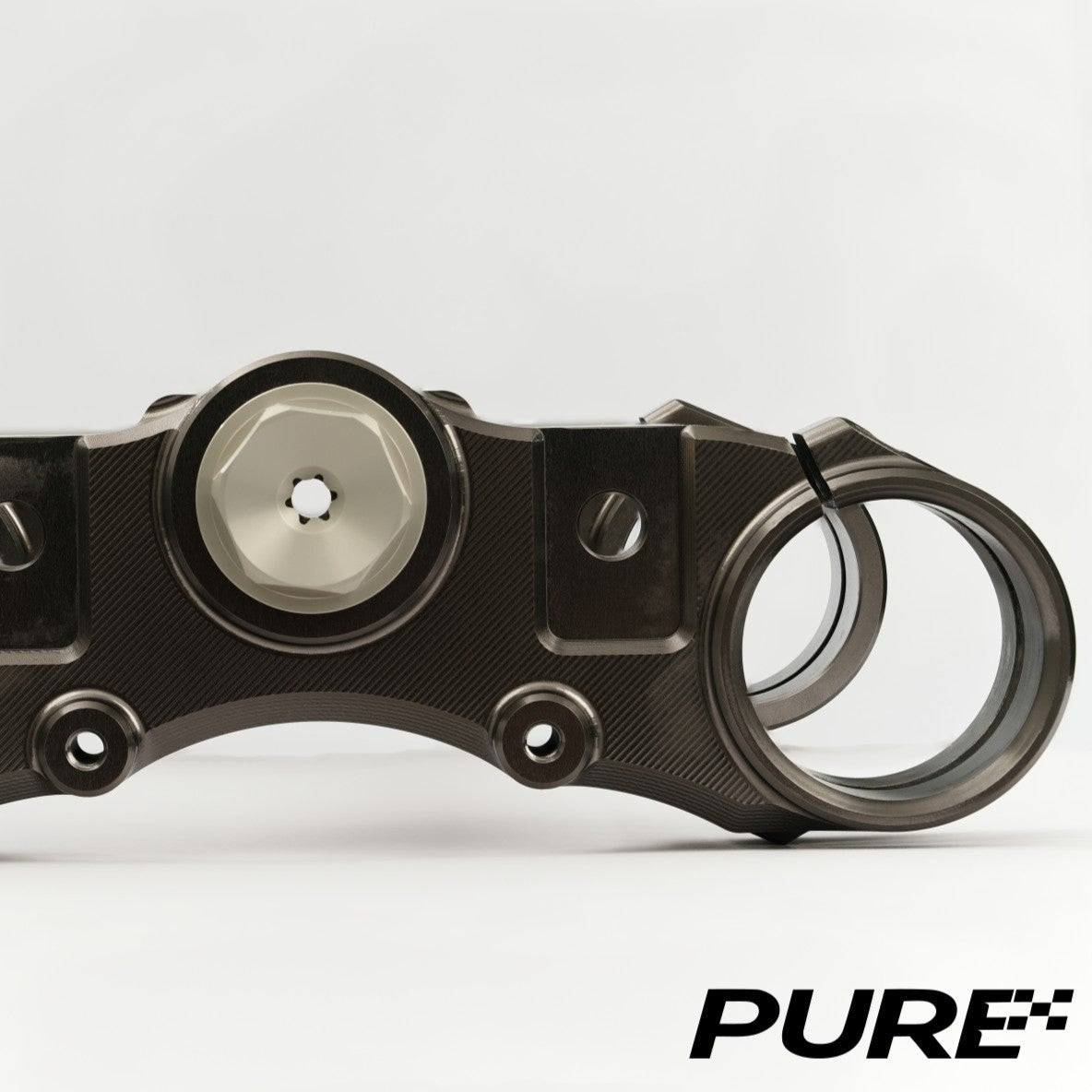

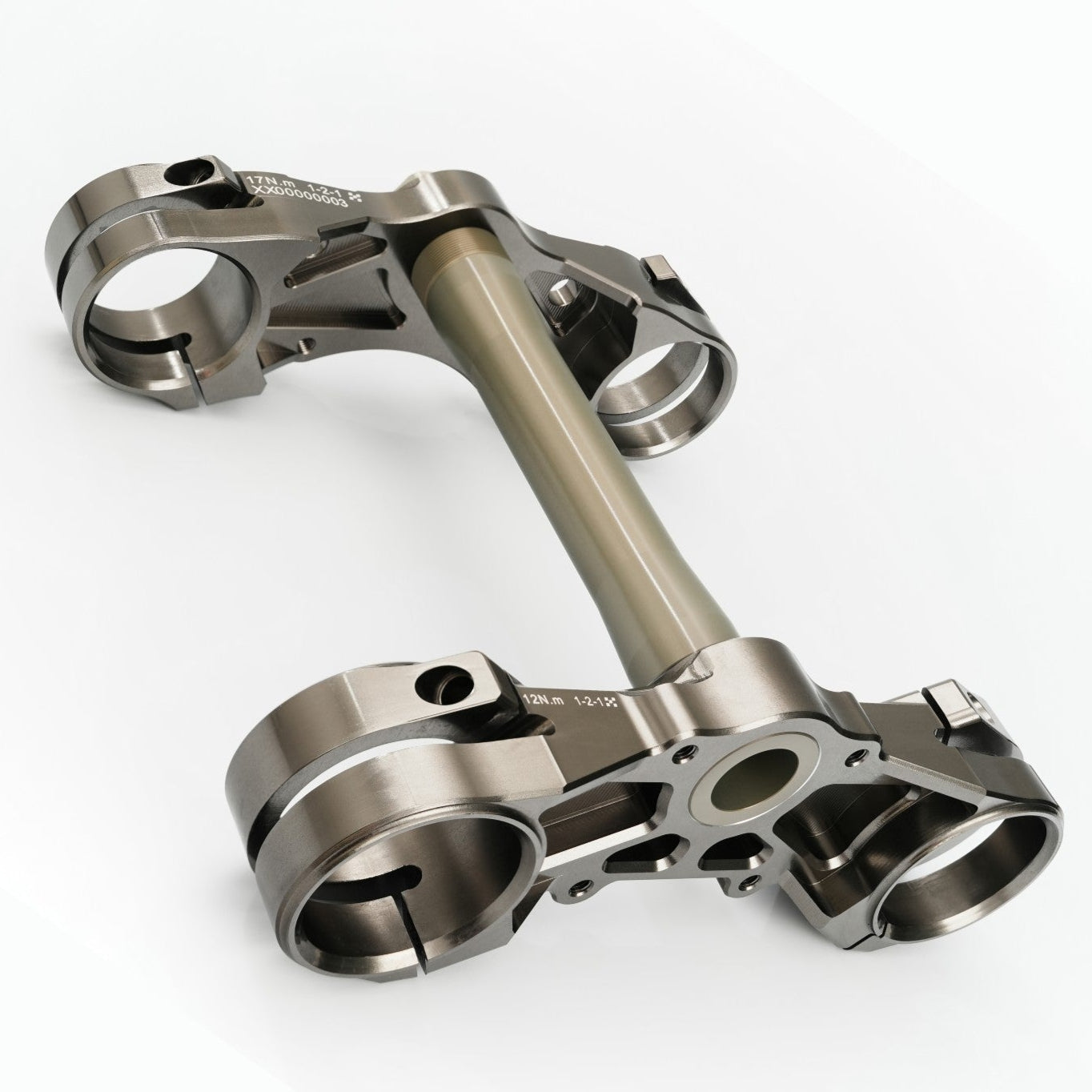

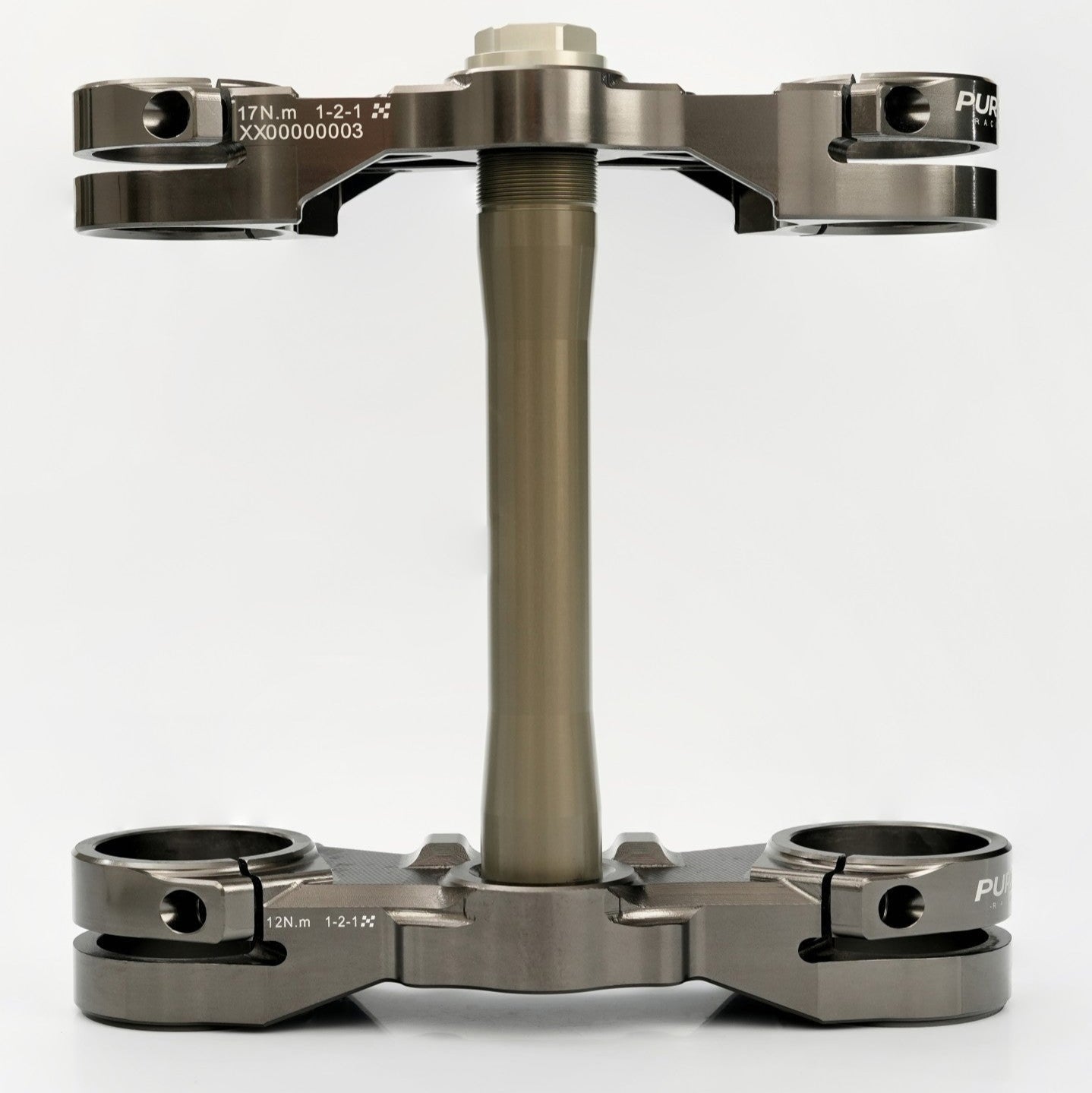

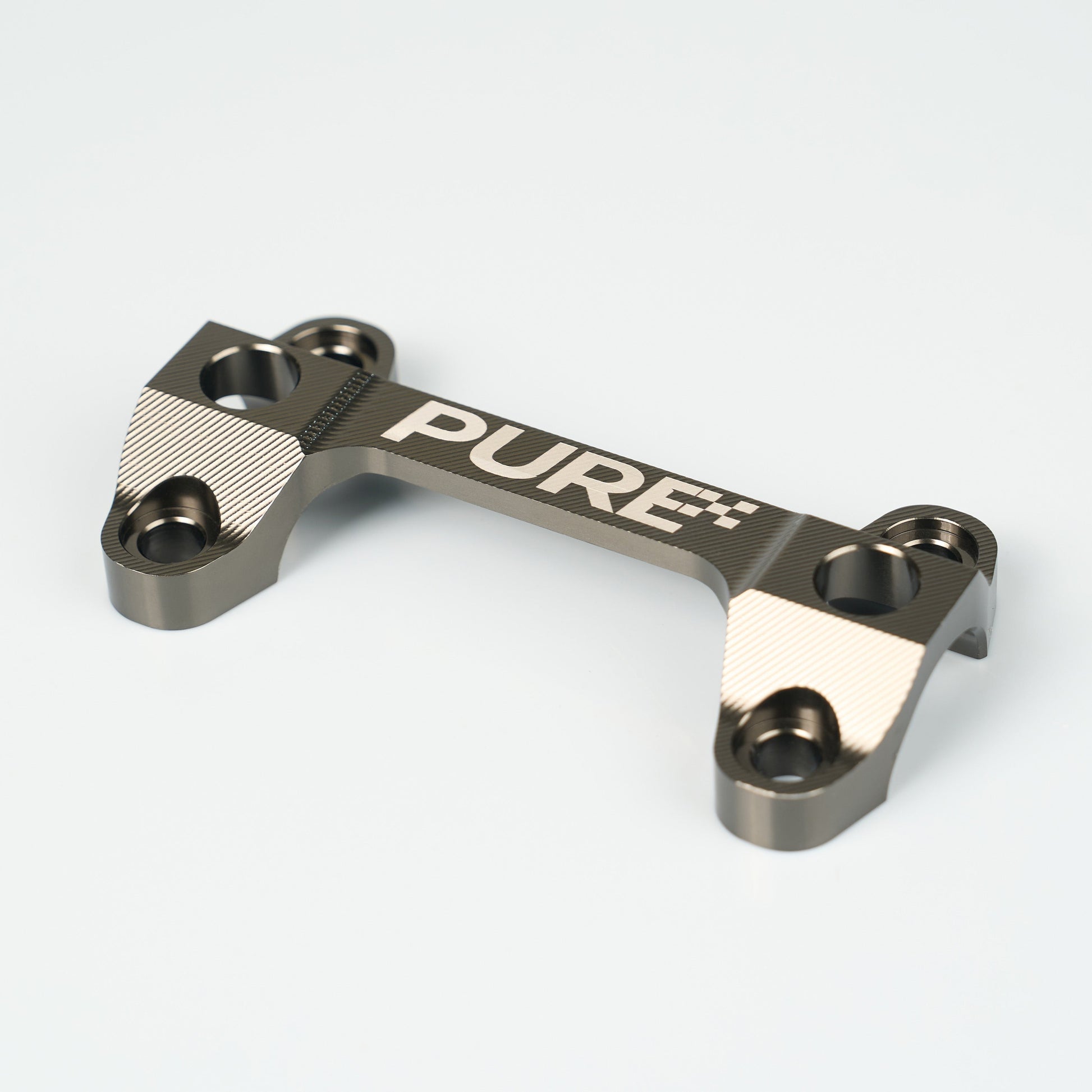

CROWN & STEM: Billet Aluminium, anodized coating

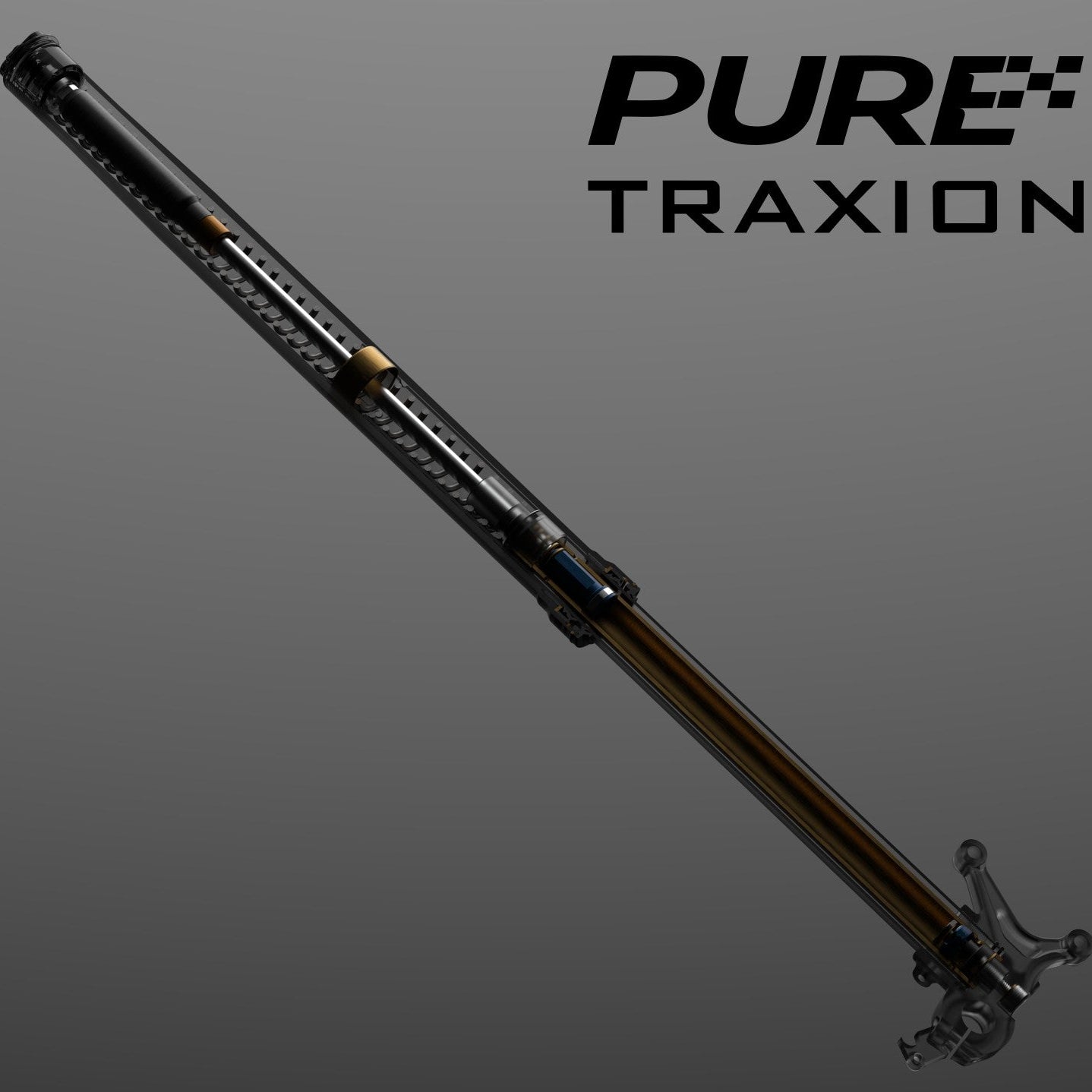

DAMPER: Dual sealed closed cartridges, dual-spring

RIDING STYLE OPTIONS: Light and Medium (TR) / Medium and Heavy (MX)

COMPRESSION & REBOUND DAMPING: 24-stage adjustable

WEIGHT: 9.8 Kg complete with oil, crown, handlebar clamps.
