WEIZE

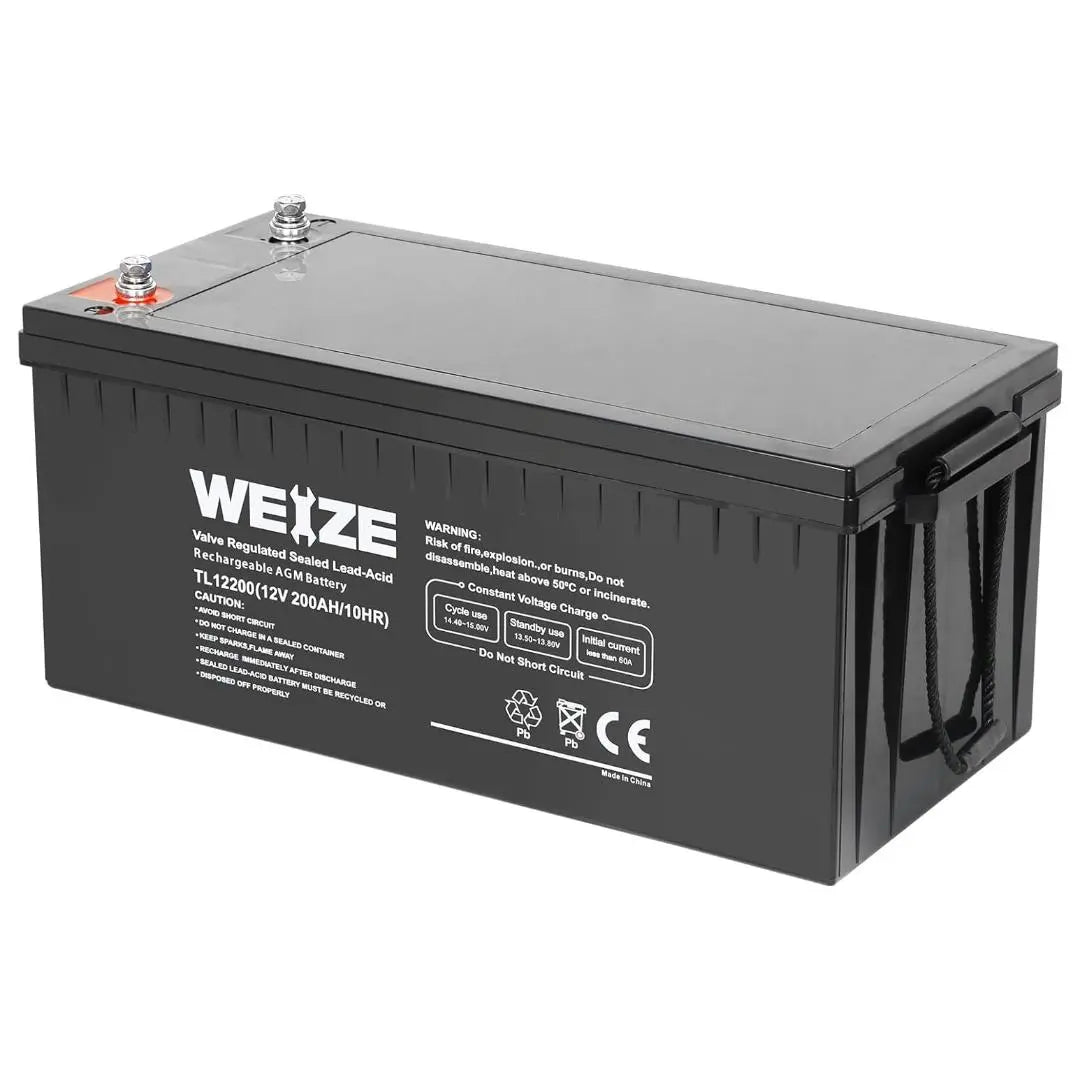

WEIZE 12V 200Ah Deep Cycle AGM Battery, Group Size 4D SLA Battery

WEIZE 12V 200Ah Deep Cycle AGM Battery, Group Size 4D SLA Battery

Regular price $319.99 USD
Regular price Sale price $319.99 USD
Sale Sold out

WEIZE 12V 200Ah Deep Cycle AGM Battery

Battery Type  AGM Battery Cell Composition Sealed Lead Acid
Nominal Voltage & Rated Capacity 12V 200Ah  Product Dimensions 522x238x221 mm / 20.55x9.37x8.70 in
Self-discharge Rate(77℉/25℃) 3%/month Product Weight 58.5 kg / 128.9 lbs
Cycle Use Voltage 14.4V - 14.7V Standard Operation Temperature 25°C±3°C / 77°F±5°F
Float Charge Voltage 13.5V - 13.8V Maximum Discharging Current 1600A (5 seconds)
Maximum Continuous Charging Current 60A Warranty 2-year

Introducing the Ultra-Reliable Weize Deep Cycle Battery

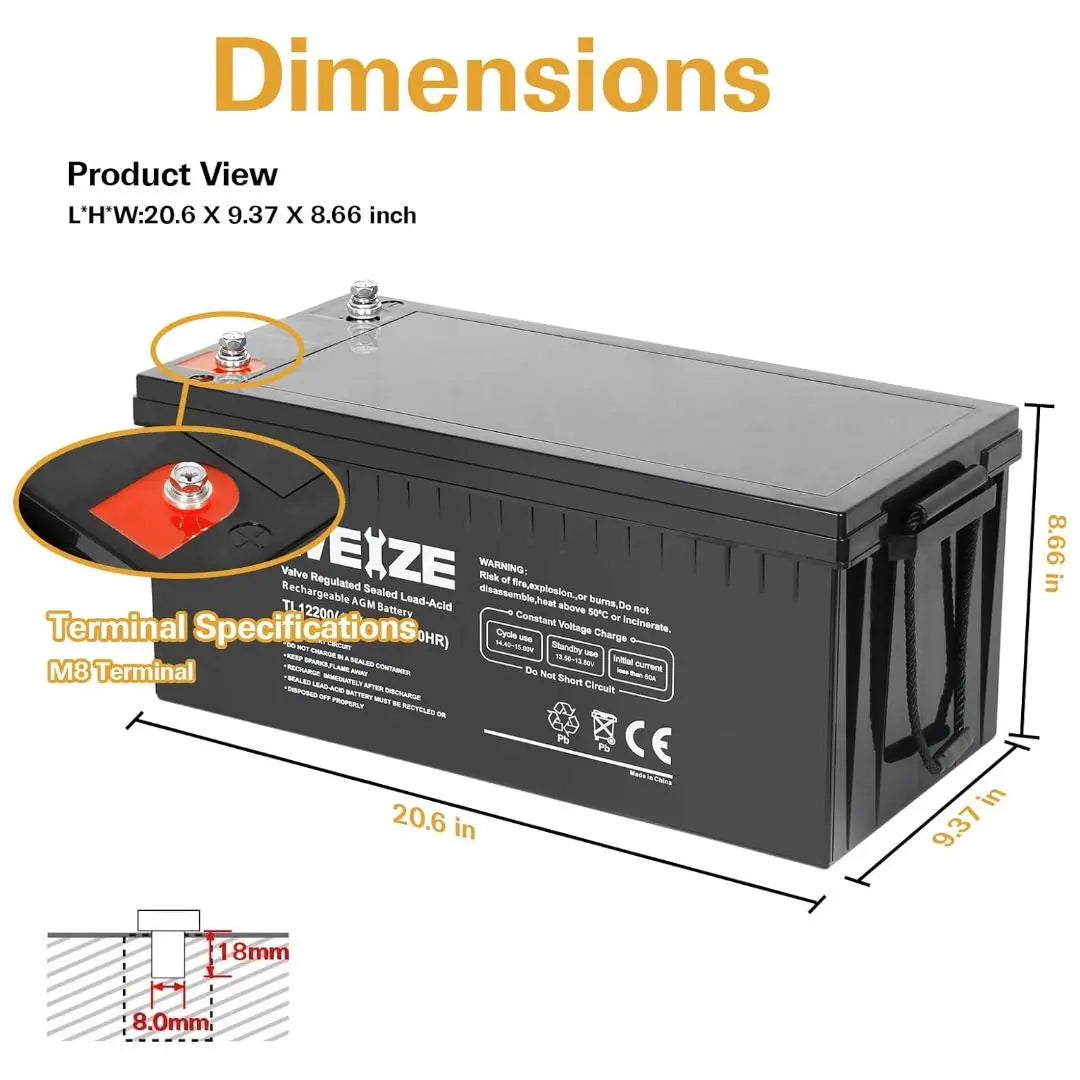

Perfect Dimensions: This powerful Weize Deep Cycle Battery boasts a practical size, measuring (L) 20.6 inches x (W) 9.37 inches x (H) 8.66 inches. It offers a substantial weight of 58.5 kg (128.9 lbs) ± 4% for reliable, long-lasting performance. The M8 terminal type provides easy, secure connections.

Unmatched Power: Get ready for robust power with a maximum discharge current of 1600A (5 sec.). This battery is recognized by UL, reflecting its premium quality and safety.

Flexible Connections: You have the flexibility to connect these batteries both in series and parallel configurations. You can parallel connect up to four batteries. There are no limitations when connecting batteries in series. However, ensure all batteries have the same capacity (Ah), voltage (V), and battery type (AGM) for optimal results. If possible, choose batteries from the same brand.

Sealed for Safety: Our sealed design enhances safety and functionality. For optimal performance, we recommend positioning the battery upright. If necessary, it can be installed on its side, although upside-down placement is not advisable.

Longevity Matters: To prolong your battery's lifespan, avoid discharging it below 50%. When not in use, ensure you fully charge it before storage and recharge it every three months.

Ideal for Varied Applications: This battery is a perfect fit for applications requiring frequent cycling or renewable power storage. With a remarkable lifespan, this maintenance-free Deep Cycle Battery is designed for repeated deep discharge. It offers low internal resistance for efficient recharging and low self-discharge during storage. The impact-resistant ABS casing makes it the top choice for marine applications, caravans, camping, RVs, and portable solar setups.

Experience the power and reliability you deserve with the Weize Deep Cycle Battery. Power your adventures and renewable energy solutions with confidence.


AGM Battery

Sealed Battery & Safe Charging

  • Manufactured with thick absorbent glass mat (AGM) separators and advanced valve-regulated technology, the battery is maintenance-free, leak-proof, and gas-free.
  • Weize SLA batteries are utilized in a wide variety of applications including; Solar Panel Off-Grid Applications, backup sump Pump, Kayak Trolling Motor, RV VAN Camping Trip, Travel Trailer, Golf Carts, Consumer Electronics, Electric Vehicles, Hunting, Fishfinder, Lawn and Garden Tools, Medical Mobility, Portable Tools, Toys and Hobby, Access Control Devices, Emergency Lighting, Security and more.

AGM Battery

AGM Battery

This 200AH 12V AGM Deep Cycle Battery is perfect for applications that require either frequent cycling or renewable power storage. With a long life cycle, this maintenance-free Deep Cycle Battery is engineered for repeated maximum deep discharge. It also has low internal resistance for superior and efficient recharging and low self-discharge for when you keep your battery in storage. The impact-resistant ABS casing makes the Weize 200AH AGM Deep Cycle battery perfect for marine applications, caravans, camping, RV's and portable solar set-ups.

AGM Battery
AGM Battery

SLA batteries have a low self-discharge rate - about 40% per year or 3.3% per month. These batteries are able to be stored without charging for up to 5-6 months when at full capacity, but doing so is not recommended. At least every 2-3 months you should top charge them. In order to prolong their shelf life, SLA batteries should be stored and maintained properly.

Best Practices

  • Store batteries in a cool, dry place (optimally 75 degrees Fahrenheit / 23 degrees Celsius or less)
  • Periodical top charging of the batteries is recommended
  • Store batteries in a fully charged state

Our batteries can be used in various types of:

  • Access Control Systems
  • Home Alarm Systems
  • Burglar Alarm Systems
  • Security Systems
  • Electric scooters and bikes
  • Electric wheelchairs
  • Ride-on Toys
  • Golf Carts

Connecting batteries

NOTE: The maximum number that can be connected in series is 4. In parallel, there are no limitations.

IN SERIES

By connecting the batteries in series you are doubling the voltage and maintaining the same capacity (amp hours). Connect the positive terminal of the first battery to the negative terminal of the second one. From the two free terminals connect the positive to the power lead on your device, and the negative to the ground connection of your application.

PARALLEL

By connecting the batteries in parallel you are doubling the capacity (amp hours) and maintaining the same voltage. Connect the positive terminal of the second battery to the positive terminal of the first battery. Do the same with the negative terminals. Connect your application to the positive and negative terminals of the first battery.

IMPORTANT INFORMATION BEFORE YOU BUY

In order to find the best replacement for your original battery you need to compare the physical dimensions, Volts, and Amp power of your original model to our battery. Besides physical dimensions, you also need to check battery terminals, which are the metal connectors on top of the battery. To determine what terminal your battery has, you will need to look at their form and determine if they have a flat connector, nut, and bolt, or wires, and then measure their sizes.

AGM Battery

When it comes to reliable power solutions, the WEIZE 12V 200Ah Deep Cycle AGM Battery stands out as a top contender. This AGM Battery is designed to meet the extensive power needs of RVs, caravans, camper trailers, and marine applications. Whether you are setting up an off grid solar system or simply need a dependable power source for your motor-home, this battery delivers consistent performance and longevity.


AGM (Absorbent Glass Mat) technology sets this battery apart because it delivers exceptional performance through its unique design. Featuring a sealed lead acid construction, the WEIZE AGM Battery minimizes the risks of leaks and spills, so it's safer and more efficient. These batteries are known for their ability to withstand deep discharges, making them ideal for applications where long-lasting energy is a must.


But what truly makes the WEIZE 12V 200Ah battery remarkable is its versatility. Whether you need power for camping trips, 4WD vehicles, or even marine vessels, this battery can handle it all. It provides a steady and reliable energy supply for various devices, from your RV's electrical system to boat trolling motors. This battery's compatibility with solar panels also makes it an excellent choice for off grid solar setups, offering sustainable energy solutions.


So, let's delve deeper into the features that make the WEIZE 12V 200Ah Deep Cycle AGM Battery a must-have. The battery is maintenance-free, which means you can install it and forget about frequent checks. Its spill-proof design ensures safety, and it can be mounted in any position without concern for leaks. Additionally, this AGM Battery excels in both low and high temperature conditions, making it a perfect choice for all climates.


The battery's Group Size 4D specifies its standard dimensions, which fit a wide range of equipment. This ensures seamless integration into existing systems, so you don’t have to worry about compatibility issues. And because it has a high amp-hour rating, the WEIZE battery can power demanding devices for extended periods, reducing the need for frequent recharges.


In essence, choosing the WEIZE 12V 200Ah Deep Cycle AGM Battery means investing in reliability and performance. This battery excels in demanding environments, offering robust power solutions for a variety of applications. So next time you plan to hit the road or set up an off grid solar project, rely on the WEIZE AGM Battery to keep your devices running smoothly and efficiently.
